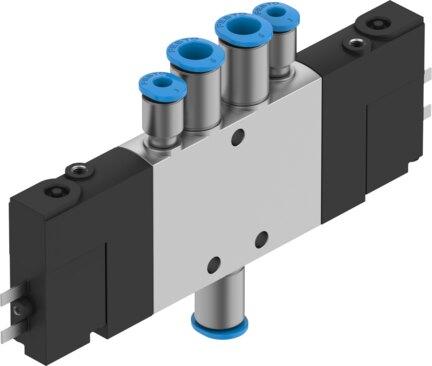

Reference imageConfirm configuration by manufacturer part number.
Festo
533158
Air solenoid valve CPE10-M1BH-5/3BS-QS6-B
The Festo 533158 is an electrical 5/3-way pressurized industrial component featuring a 10 mm width, a piston gate valve structural design, and a normal nominal flow rate of 300 l/min normalized to DIN 1343. Operating at 24V DC with a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), this piloted unit includes QS-6 pneumatic working ports, adjustable exhaust air, a mechanical spring reset method, and an IP65 degree of protection with a plug socket per IEC 60529. Certified by c UL us (OL) and DNV-TAA000032X, the device supports any mounting position, soft sealing, and features both non-detenting and accessory-detenting manual overrides with an external pilot air supply port. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533158
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533158.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Width
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 300 l/min
- Pneumatic working port
- QS-6
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- Certicate issuing authority
- DNV-TAA000032X | UL MH19482
- Degree of protection
- IP65 | With plug socket | As per IEC 60529
- Nominal width
- 4 mm
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Valve position ID
- Label holder
- Lap
- Positive overlap
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Switching time off
- 20 ms
- On switching time
- 16 ms
- Duty cycle
- 100% in combination with holding current reduction
