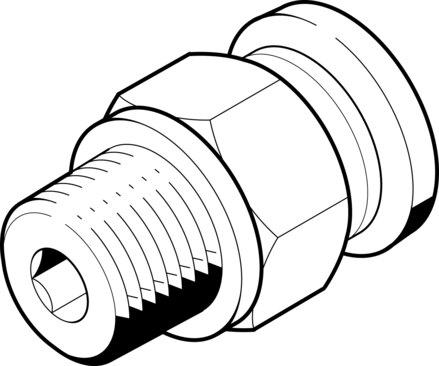

Reference imageConfirm configuration by manufacturer part number.
Festo
533224
Push-in fitting QB-3/8-3/8-U-M
The Festo part number 533224 is a straight-design industrial component featuring a nominal width of 0.315 inches, an R3/8 external thread pneumatic connection 1, and a pneumatic connection 2 for 3/8-inch outside diameter tubing. Supplied in a pack size of 5 with a product weight of 0.72 oz, this PBT housing unit operates within a temperature range of 0 °C to 60 °C and an operating pressure span of 0.095 MPa to 1 MPa using compressed air conforming to ISO 8573-1:2010 [7:-:-]. It incorporates an external hexagon SW17 and internal hexagon AF 8 mounting type, a coated screwed plug seal, and a VDMA24364 Zone III LABS conformity with CRC 1 low corrosion stress. Request a quote by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533224
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533224.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.315 in
- Type of seal on screwed plug
- Coating
- Design
- Straight design
- Pack size
- 5
- Operating pressure for entire temperature range
- 0.095 MPa...1 MPa | 0.95 bar...10 bar | 13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 0.72 oz
- Type of mounting
- External hexagon SW17 | Internal hexagon, AF 8
- Pneumatic connection 1
- External thread R3/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/8"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Material of threaded seal
- NBR
- Releasing ring material
- POM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533224. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
