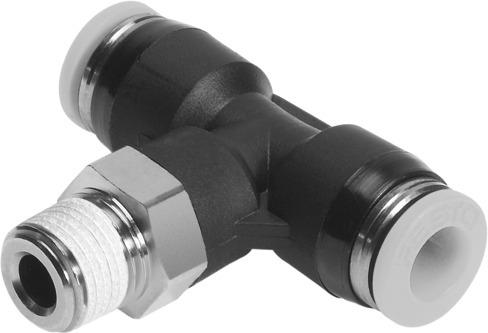

Reference imageConfirm configuration by manufacturer part number.
Festo
533250
Push-in T-fitting QBT-M5-1/4-U-M
The Festo 533250 is a standard T-shape industrial component featuring an M5 external thread for pneumatic connection 1 and a 1/4" outer diameter connection for pneumatic connection 2, supplied in a pack size of 10 with a product weight of 0.579 oz per unit. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an operating pressure range of 0.095 MPa to 1 MPa (0.95 bar to 10 bar, or 13.775 psi to 145 psi) and an ambient temperature span of 0 °C to 60 °C (32 °F to 140 °F). This component incorporates a sealing ring on the screwed plug, an external hexagon SW12 mounting type with a nominal tightening torque of 0.5 Nm (±10% tolerance), a gray releasing ring, a nominal width of 0.098 in, and maintains a corrosion resistance class of CRC 1 with VDMA24364 Zone III LABS conformity, while maritime classification is detailed in the certificate. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533250
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533250.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.098 in
- Type of seal on screwed plug
- Sealing ring
- Design
- T-shape
- Pack size
- 10
- Operating pressure for entire temperature range
- 0.095 MPa...1 MPa | 0.95 bar...10 bar | 13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Nominal tightening torque
- 0.5 Nm
- Tolerance for nominal tightening torque
- ±10%
- Product weight
- 0.579 oz
- Type of mounting
- External hexagon SW12
- Pneumatic connection 1
- External thread M5
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Material of threaded seal
- NBR
- Releasing ring material
- POM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533250. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
