Festo
533251

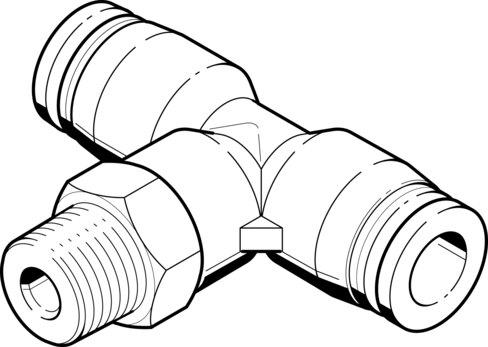

Push-in T-fitting QBMT-1/8-1/8-U-M
The Festo 533251 is a standard T-shape industrial component featuring a 0.098 in nominal width, an external thread R1/8 pneumatic connection 1, and a pneumatic connection 2 for 1/8" outside diameter pneumatic tubing. Designed with a PBT housing, a gray releasing ring, and an external hexagon SW10 mounting type, this unit operates within a temperature range of 0 °C to 60 °C (32 °F to 140 °F) and an operating pressure of 0.095 MPa to 1 MPa (0.95 bar to 10 bar | 13.775 psi to 145 psi). Supplied in a pack size of 10 with a product weight of 0.289 oz each, it utilizes a coating-sealed screwed plug and supports compressed air media conforming to ISO 8573-1:2010 [7:-:-] with lubricated operation capability. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533251
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533251.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.098 in
- Type of seal on screwed plug
- Coating
- Design
- T-shape
- Pack size
- 10
- Operating pressure for entire temperature range
- 0.095 MPa...1 MPa | 0.95 bar...10 bar | 13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 0.289 oz
- Type of mounting
- External hexagon SW10
- Pneumatic connection 1
- External thread R1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 1/8"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Material of threaded seal
- NBR
- Releasing ring material
- POM
- Material of tube retaining claw
- high-alloy stainless steel
