Reference imageConfirm configuration by manufacturer part number.
Festo
533252

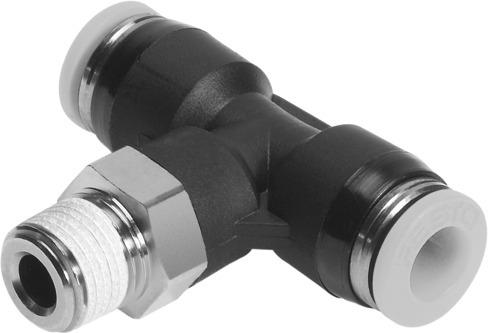

Push-in T-fitting QBT-1/8-5/32-U-M
The Festo part number 533252 is a standard T-shape industrial component featuring a 0.118-inch nominal width, an external thread R1/8 pneumatic connection 1, and a pneumatic connection 2 designed for 5/32-inch outside diameter pneumatic tubing. Constructed with a PBT housing and a gray releasing ring, this RoHS-compliant unit operates within a pressure range of 13.775 psi to 145 psi and an ambient temperature range of 32 °F to 140 °F utilizing compressed air as per ISO 8573-1:2010 [7:-:-]. It incorporates an external hexagon SW10 type of mounting, a coating seal on the screwed plug, and a CRC 1 low corrosion stress rating with a product weight of 0.399 oz. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533252
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533252.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.118 in
- Type of seal on screwed plug
- Coating
- Design
- T-shape
- Pack size
- 10
- Operating pressure for entire temperature range
- 0.095 MPa...1 MPa | 0.95 bar...10 bar | 13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 0.399 oz
- Type of mounting
- External hexagon SW10
- Pneumatic connection 1
- External thread R1/8
- Pneumatic connection 2
- for pneumatic tubing outside diameter 5/32"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Material of threaded seal
- NBR
- Releasing ring material
- POM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533252. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
