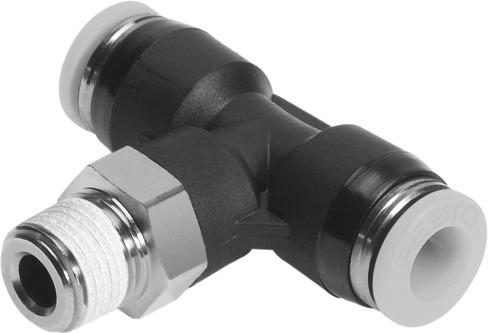

Reference imageConfirm configuration by manufacturer part number.
Festo
533264
Push-in T-fitting QBT-1/2-3/8-U-M
This Festo industrial component, part number 533264, is a standard T-shaped pneumatic fitting featuring an external thread R1/2 connection and a port for 3/8" outside diameter pneumatic tubing. Designed with a PBT housing, a gray releasing ring, and an external hexagon SW22 mounting type, the unit operates across a pressure range of 0.095 MPa to 1 MPa and an ambient temperature range of 0 °C to 60 °C using compressed air per ISO 8573-1:2010 [7:-:-]. Each pack contains 5 units, featuring a 0.315-in nominal width, a coating seal on the screwed plug, and RoHS-compliant materials with a low corrosion stress CRC rating of 1. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533264
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533264.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.315 in
- Type of seal on screwed plug
- Coating
- Design
- T-shape
- Pack size
- 5
- Operating pressure for entire temperature range
- 0.095 MPa...1 MPa | 0.95 bar...10 bar | 13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 2.06 oz
- Type of mounting
- External hexagon SW22
- Pneumatic connection 1
- External thread R1/2
- Pneumatic connection 2
- for pneumatic tubing outside diameter 3/8"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Material of threaded seal
- NBR
- Releasing ring material
- POM
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533264. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
