Festo
533265

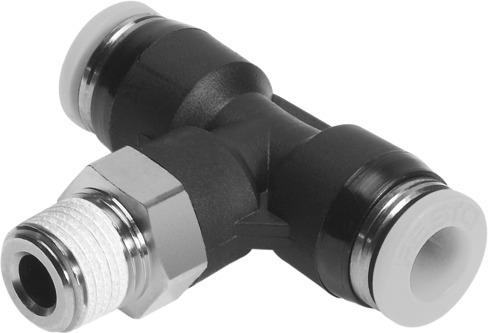

Push-in T-fitting QBT-1/2-1/2-U-M
The Festo 533265 is a standard T-shape industrial component featuring a 0.394 in nominal width, an external hexagon SW22 mounting, an R1/2 external thread for pneumatic connection 1, and a pneumatic connection 2 for 1/2" outside diameter tubing with a gray releasing ring. Constructed with a PBT housing and a coating type of seal on the screwed plug, this RoHS compliant part operates within a temperature range of 0 °C to 60 °C (32 °F to 140 °F) and an operating pressure range of 0.095 MPa to 1 MPa (0.95 bar to 10 bar, 13.775 psi to 145 psi). It handles compressed air media per ISO 8573-1:2010 [7:-:-], allows lubricated operation, and possesses a corrosion resistance class of CRC 1 with VDMA24364 Zone III LABS conformity, a product weight of 2.18 oz, a pack size of 1, and maritime classification detailed in its certificate. Please submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533265
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533265.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.394 in
- Type of seal on screwed plug
- Coating
- Design
- T-shape
- Pack size
- 1
- Operating pressure for entire temperature range
- 0.095 MPa...1 MPa | 0.95 bar...10 bar | 13.775 psi...145 psi
- Maritime classication
- See certicate
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Product weight
- 2.18 oz
- Type of mounting
- External hexagon SW22
- Pneumatic connection 1
- External thread R1/2
- Pneumatic connection 2
- for pneumatic tubing outside diameter 1/2"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- PBT
- Material of threaded seal
- NBR
- Releasing ring material
- POM
- Material of tube retaining claw
- high-alloy stainless steel
