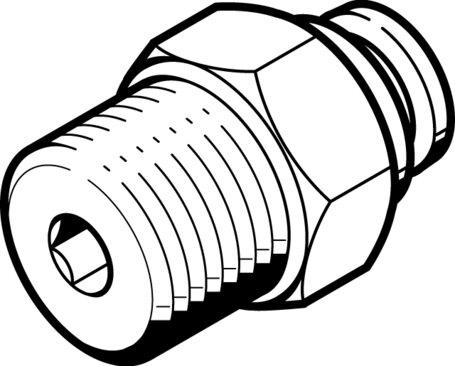

Reference imageConfirm configuration by manufacturer part number.
Festo
533269
Push-in fitting QB-10-32-UNF-1/4-U
The Festo part number 533269 is a straight-design industrial component featuring a 0.098-inch nominal width, a 10-32 UNF-2A external thread pneumatic connection 1, and a connection 2 for 1/4-inch outer diameter pneumatic tubing utilizing a push-pull structural design with a gray releasing ring. This standard-sized unit operates within a temperature range of 0 °C to 60 °C (32 °F to 140 °F) and supports compressed air media conforming to ISO 8573-1:2010 [7:-:-] at pressures from -0.95 bar to 10 bar (-13.775 psi to 145 psi), utilizing a sealing ring on the screwed plug and an external hexagon 1/2 or hex socket 3/32 mounting type with a maximum tightening torque of 1.11 ft-lbf. Incorporating a sealing ring, a weight of 0.31 oz, a pack size of 10, a corrosion resistance class of 1, and VDMA24364 Zone III LABS conformity, the assembly accommodates lubricated operation in any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533269
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533269.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 0.098 in
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Ambient temperature
- 0 °C...60 °C
- Max. tightening torque
- 1.11 ft-lbf
- Product weight
- 0.31 oz
- Type of mounting
- External hexagon 1/2 | Hex socket 3/32
- Pneumatic connection 1
- External thread 10-32 UNF-2A
- Pneumatic connection 2
- for pneumatic tubing outer diameter 1/4"
- Ambient temperature Fahrenheit
- 32 °F...140 °F
- Releasing ring color
- Gray
- Note on materials
- RoHS compliant
- Housing material
- Brass, nickel-plated
- Releasing ring material
- POM
- Material of tubing seal
- NBR
- Material of tube retaining claw
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533269. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
