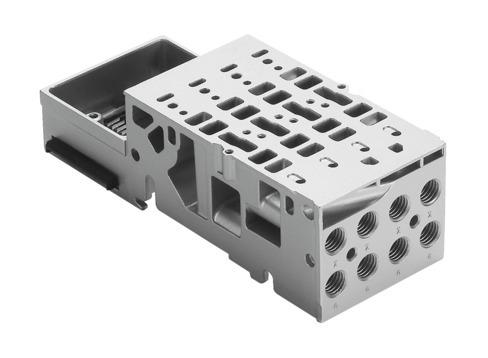

Reference imageConfirm configuration by manufacturer part number.
Festo
533352
Sub-base VMPA1-FB-AP-4-1
The Festo part number 533352 is an industrial component featuring a die-cast aluminum sub-base with dimensions of 42 mm in width, 107.3 mm in length, and a 10.5 mm width dimension, weighing 185 g. It accommodates a maximum of 4 valve positions, operates within a pressure range of -0.9 bar to 10 bar, and requires a pilot pressure between 3 bar and 8 bar at ambient temperatures of -5 °C to 50 °C. Equipped with M7 pneumatic connections 2 and 4, this RoHS compliant unit adheres to VDMA24364-B1/B2-L LABS conformity and holds a corrosion resistance class (CRC) of 0 for non-corrosive environments. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533352
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533352.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 42 mm
- Length
- 107.3 mm
- Width dimension
- 10.5 mm
- Max. no. of valve positions
- 4
- Operating pressure
- -0.9 bar...10 bar
- Pilot pressure
- 3 bar...8 bar
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 185 g
- Pneumatic connection 2
- M7
- Pneumatic connection 4
- M7
- Note on materials
- RoHS compliant
- Material of sub-base
- Die-cast aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533352. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
