Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

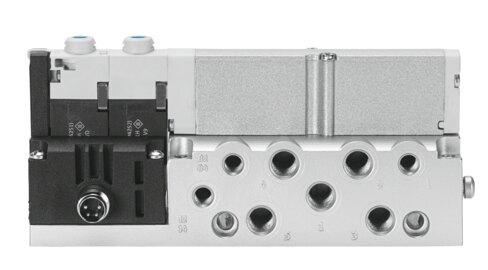

Reference imageConfirm configuration by manufacturer part number.
Festo
533377
Air solenoid valve VMPA1-M1H-J-M7-PI
The Festo 533377 is an electrical 5/2-way bistable industrial component featuring a 10 mm valve size, piston gate valve structural design, and soft sealing principle with positive overlap. This piloted valve delivers a normal nominal flow rate of 360 l/min through M7 pneumatic working ports, operating at 24V DC and 3 bar to 8 bar of pressure with an adjustable exhaust air function, internal pilot air supply, and non-reversible flow direction. Certified as c UL us recognized with CE and UKCA markings, the IP65-rated assembly supports any mounting position, detenting or non-detenting manual override, and internal pilot air supply. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533377
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533377.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, bistable
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 360 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Degree of protection
- IP65 | In mounted state | As per IEC 60529
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- No
- Standard nominal ow rate with QS-6
- 360 l/min
- On switching time
- 10 ms
- Changeover time
- 15 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533377. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
