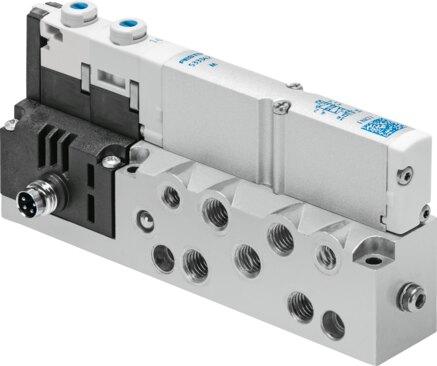

Reference imageConfirm configuration by manufacturer part number.
Festo
533379
Air solenoid valve VMPA1-M1H-G-M7-PI
The Festo 533379 is a 10 mm electrical 5/3-way closed piston gate valve featuring a piloted type of control with internal pilot air supply and a soft sealing principle. Operating at 24V DC within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), this unit delivers a normal nominal flow rate of 320 l/min through M7 pneumatic working ports and includes an adjustable exhaust air function, mechanical spring reset, and detenting or non-detenting manual override. It carries IP65 protection in the mounted state along with c UL us recognition, CE marking per EU EMC and RoHS directives, and UKCA marking for UK EMC and RoHS instructions. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533379
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533379.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 320 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Degree of protection
- IP65 | In mounted state | As per IEC 60529
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- No
- Standard nominal ow rate with QS-6
- 320 l/min
- Switching time off
- 35 ms
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533379. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
