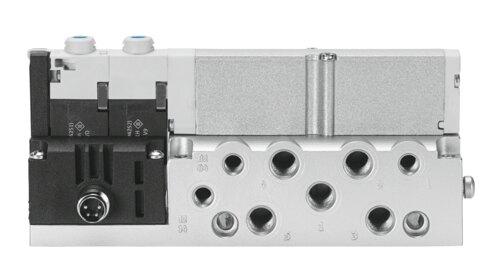

Reference imageConfirm configuration by manufacturer part number.
Festo
533389
Air solenoid valve VMPA1-M1H-E-S-M7-PI
The Festo 533389 is an electrical 10 mm piston gate valve featuring a 5/3 exhausted function, soft sealing principle, and a normal nominal flow rate of 240 l/min normalized to DIN 1343. Operating on 24V DC within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar), this piloted industrial component includes an external pilot air supply port, M7 pneumatic working ports, an adjustable exhaust air function, and a mechanical spring reset method with any mounting position. It carries c UL us recognition, CE and UKCA markings per EMC and RoHS directives, and provides IP65 protection in the mounted state according to IEC 60529, complemented by detenting and non-detenting manual override capabilities and reversible flow direction. Submit the exact part number, quantity, and application requirements for an immediate RFQ response.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533389
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533389.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Valve size
- 10 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 240 l/min
- Pneumatic working port
- M7
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Degree of protection
- IP65 | In mounted state | As per IEC 60529
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Suitability for vacuum
- Yes
- Standard nominal ow rate with QS-6
- 240 l/min
- Switching time off
- 35 ms
