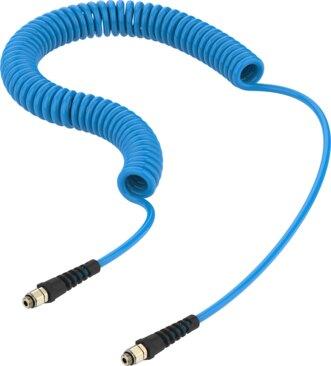

Reference imageConfirm configuration by manufacturer part number.
Festo
533463
Spiral plastic tubing PUN-10X1,5-SG-2,4-BL-1/4
The Festo industrial component, part number 533463, is a blue pneumatic part featuring a 2.4 m working length, a 10 mm outside diameter, a 6 mm inside diameter, a 0.891 m block length, and 21 windings with a 42 mm winding diameter. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -40 °C to 60 °C, supporting an operating pressure from -0.095 MPa to 1 MPa and a temperature-dependent operating pressure up to 1.5 MPa. Equipped with external thread G1/4 pneumatic connections on both ends, the 275 g assembly achieves a nominal tightening torque of 10 Nm with a ±20% tolerance, a Shore hardness of A 87 +/-3 and D 50 +/-3, a bending radius relevant for flow rate of 50 mm, a CRC rating of 1, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533463
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533463.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working length
- 2.4 m
- Outside diameter
- 10 mm
- Block length
- 0.891 m
- Bending radius relevant for ow rate
- 50 mm
- Inside diameter
- 6 mm
- Winding diameter
- 42 mm
- Number of windings
- 21
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.5 MPa | -0.95 bar...15 bar | -13.775 psi...217.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...60 °C
- Nominal tightening torque
- 10 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 275 g
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- External thread G1/4
- Color
- Blue
- Shore hardness
- A 87 +/-3 | D 50 +/-3
- Material of connecting thread
- Brass | Nickel-plated
- Note on materials
- RoHS compliant
- Antikink device material
- PA
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533463. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
