Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

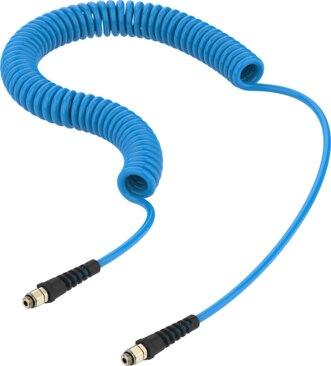

Reference imageConfirm configuration by manufacturer part number.
Festo
533464
Spiral plastic tubing PUN-10X1,5-SG-4,8-BL-1/4
This Festo industrial component, part number 533464, is a blue pneumatic part featuring a 4.8 m working length, a 10 mm outside diameter, a 6 mm inside diameter, and external thread G1/4 connections on both ends. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -40 °C to 60 °C, supporting an operating pressure of -0.095 MPa to 1 MPa over the entire temperature range and up to 1.5 MPa in temperature-dependent conditions. The unit has a block length of 1.17 m, a 50 mm bending radius relevant for flow rate, a 42 mm winding diameter, 50 windings, a nominal tightening torque of 10 Nm with a ±20% tolerance, a Shore hardness of A 87 +/-3 and D 50 +/-3, a corrosion resistance class of CRC 1, VDMA24364-B1/B2-L LABS conformity, and a product weight of 340 g. Submit the exact part number, quantity, and application requirements to request a quote for this item.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533464
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533464.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working length
- 4.8 m
- Outside diameter
- 10 mm
- Block length
- 1.17 m
- Bending radius relevant for ow rate
- 50 mm
- Inside diameter
- 6 mm
- Winding diameter
- 42 mm
- Number of windings
- 50
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.5 MPa | -0.95 bar...15 bar | -13.775 psi...217.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...60 °C
- Nominal tightening torque
- 10 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 340 g
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- External thread G1/4
- Color
- Blue
- Shore hardness
- A 87 +/-3 | D 50 +/-3
- Material of connecting thread
- Brass | Nickel-plated
- Note on materials
- RoHS compliant
- Antikink device material
- PA
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533464. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
