Festo
533465

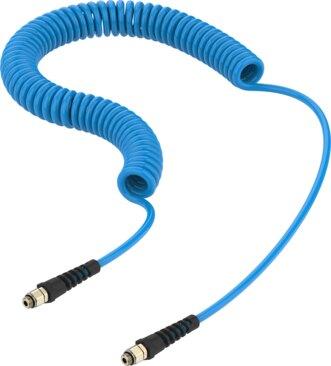

Spiral plastic tubing PUN-10X1,5-SG-6-BL-1/4
This Festo industrial component (Part Number 533465) is a blue pneumatic part featuring a working length of 6 m, an outside diameter of 10 mm, an inside diameter of 6 mm, and 66 windings with a winding diameter of 42 mm. It operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -40 °C to 60 °C, supporting an operating pressure of -0.095 MPa to 1 MPa for the entire temperature range and up to 1.5 MPa in temperature-dependent conditions. Equipped with G1/4 external thread pneumatic connections on both ends, the 430 g assembly exhibits a block length of 1.323 m, a bending radius relevant for flow rate of 50 mm, and a nominal tightening torque of 10 Nm with a ±20% tolerance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533465
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533465.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working length
- 6 m
- Outside diameter
- 10 mm
- Block length
- 1.323 m
- Bending radius relevant for ow rate
- 50 mm
- Inside diameter
- 6 mm
- Winding diameter
- 42 mm
- Number of windings
- 66
- Operating pressure for entire temperature range
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.5 MPa | -0.95 bar...15 bar | -13.775 psi...217.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...60 °C
- Nominal tightening torque
- 10 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 430 g
- Pneumatic connection 1
- External thread G1/4
- Pneumatic connection 2
- External thread G1/4
- Color
- Blue
- Shore hardness
- A 87 +/-3 | D 50 +/-3
- Material of connecting thread
- Brass | Nickel-plated
- Note on materials
- RoHS compliant
- Antikink device material
- PA
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533465. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
