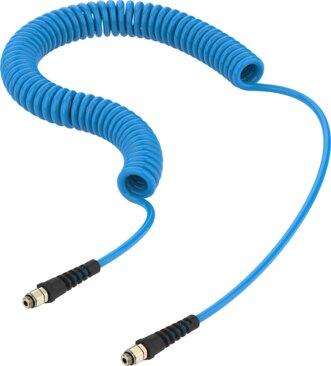

Reference imageConfirm configuration by manufacturer part number.
Festo
533466
Spiral plastic tubing PUN-12X2-SG-4,8-BL-3/8
The Festo 533466 is an industrial component featuring a blue exterior, a working length of 4.8 m, an outside diameter of 12.4 mm, an inside diameter of 8 mm, and 41 windings with a winding diameter of 51 mm and block length of 1.176 m. This part operates with compressed air as per ISO 8573-1:2010 [7:-:-] across an ambient temperature range of -40 °C to 60 °C, supporting an operating pressure of -0.095 MPa to 0.9 MPa for the entire temperature range and -0.095 MPa to 1.3 MPa under temperature-dependent conditions. Equipped with external thread G3/8 pneumatic connections on both ends, it features a shore hardness of A 87 +/-3 and D 50 +/-3, a nominal tightening torque of 13 Nm with a ±20% tolerance, a bending radius relevant for flow rate of 65 mm, a CRC rating of 1, LABS conformity VDMA24364-B1/B2-L, and a product weight of 480 g. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533466
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533466.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working length
- 4.8 m
- Outside diameter
- 12.4 mm
- Block length
- 1.176 m
- Bending radius relevant for ow rate
- 65 mm
- Inside diameter
- 8 mm
- Winding diameter
- 51 mm
- Number of windings
- 41
- Operating pressure for entire temperature range
- -0.095 MPa...0.9 MPa | -0.95 bar...9 bar | -13.775 psi...130.5 psi
- Temperature-dependent operating pressure
- -0.095 MPa...1.3 MPa | -0.95 bar...13 bar | -13.775 psi...188.5 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...60 °C
- Nominal tightening torque
- 13 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 480 g
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- External thread G3/8
- Color
- Blue
- Shore hardness
- A 87 +/-3 | D 50 +/-3
- Material of connecting thread
- Brass | Nickel-plated
- Note on materials
- RoHS compliant
- Antikink device material
- PA
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533466. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
