Festo
533599

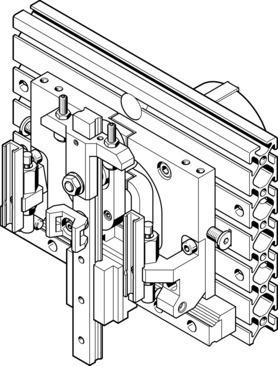

Handling module HSP-12-AP
The Festo part number 533599 is a double-acting industrial component featuring a size 12 cross guide structural design, a swivel module, and positively driven motion sequences with a Y-stroke of 52 mm to 68 mm, a Z-stroke of 20 mm to 30 mm, and a Z working stroke of 15 mm. Operating at pressures from 4 bar to 8 bar with compressed air conforming to ISO 8573-1:2010 [7:-:-], this unit incorporates pneumatic shock absorbers at both ends with a soft characteristic curve, achieves a repetition accuracy of ±0.01 mm, and maintains a minimum cycle time of 0.6 s within an ambient temperature range of 0 °C to 60 °C. Position sensing is accomplished via a proximity switch, while torsion protection is provided by the cross guide on a vertical guide rail mounting position that supports a maximum dynamic Mx torque of 1.1 Nm, static Mx moment of 5 Nm, and dynamic My torque of 1.1 Nm under VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for an official quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533599
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533599.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Y-stroke
- 52 mm...68 mm
- Z-stroke
- 20 mm...30 mm
- Z working stroke
- 15 mm
- Cushioning
- Pneumatic shock absorber at both ends | Soft characteristic curve
- Mounting position
- Guide rail | Vertical
- Mode of operation
- Double-acting
- Structural design
- Cross guide | Swivel module | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Cross guide
- Operating pressure
- 4 bar...8 bar
- Minimum cycle time
- 0.6 s
- Repetition accuracy
- ±0.01 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. torque Mx dynamic
- 1.1 Nm
- Max. static moment Mx
- 5 Nm
- Max. torque My dynamic
- 1.1 Nm
- Max. static moment My
- 5 Nm
- Max. torque Mz dynamic
- 1.1 Nm
- Max. static moment Mz
- 5 Nm
- Max. payload
- 0.5 kg
- Maximum process force in y direction
- 30 N
- Theoretical force at 6 bar
- 40 N
- Product weight
- 1900 g
- Front unit mounting
- With through-hole
- Type of mounting
- With through-hole
