Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

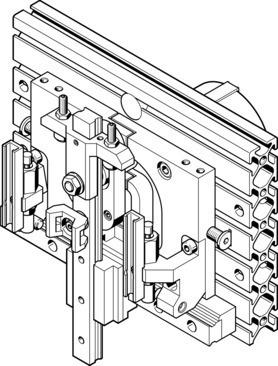

Reference imageConfirm configuration by manufacturer part number.
Festo
533603
Handling module HSP-12-AP-WR
The Festo part number 533603 is an industrial component featuring a size 12 structural design with a cross guide, swivel module, and an optional left wait position module executing a positively driven motion sequence. This double-acting unit operates at a pressure of 4 bar to 8 bar using compressed air according to ISO 8573-1:2010 [7:-:-], offering a Y-stroke of 52 mm to 68 mm, a Z-stroke of 20 mm to 30 mm, a 15 mm Z working stroke, and a maximum wait position module Z-stroke of 15 mm. Equipped with pneumatic shock absorbers with a soft characteristic curve at both ends, the assembly achieves a minimum cycle time of 0.6 s, a repetition accuracy of ±0.01 mm, a maximum dynamic torque Mx of 1.1 Nm, and a maximum static moment Mx of 5 Nm with position sensing via proximity switches. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533603
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533603.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 12
- Maximum wait position module Z-stroke
- 15 mm
- Y-stroke
- 52 mm...68 mm
- Z-stroke
- 20 mm...30 mm
- Z working stroke
- 15 mm
- Cushioning
- Pneumatic shock absorber at both ends | Soft characteristic curve
- Mounting position
- Guide rail | Vertical
- Mode of operation
- Double-acting
- Structural design
- Cross guide | Swivel module | Wait position module optionally on left | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Cross guide
- Operating pressure
- 4 bar...8 bar
- Minimum cycle time
- 0.6 s
- Repetition accuracy
- ±0.01 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. torque Mx dynamic
- 1.1 Nm
- Max. static moment Mx
- 5 Nm
- Max. torque My dynamic
- 1.1 Nm
- Max. static moment My
- 5 Nm
- Max. torque Mz dynamic
- 1.1 Nm
- Max. static moment Mz
- 5 Nm
- Max. payload
- 0.5 kg
- Maximum process force in y direction
- 30 N
- Theoretical force at 6 bar
- 40 N
- Product weight
- 1900 g
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533603. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
