Festo
533607

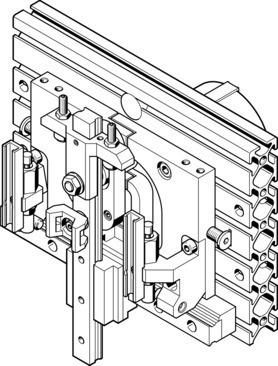

Handling module HSP-16-AP
The Festo 533607 is a double-acting industrial component featuring a size 16 structural design with a cross guide, swivel module, and positively driven motion sequence, operating at 4 bar to 8 bar within an ambient temperature range of 0 °C to 60 °C. It delivers a Y-stroke of 90 mm to 110 mm, a Z-stroke of 35 mm to 50 mm, a Z working stroke of 20 mm, and a repetition accuracy of ±0.01 mm with a minimum cycle time of 0.8 s. Pneumatic shock absorbers with a soft characteristic curve cushion both ends, while position sensing is handled via proximity switch and motion is guided vertically on a guide rail. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533607
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533607.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 16
- Y-stroke
- 90 mm...110 mm
- Z-stroke
- 35 mm...50 mm
- Z working stroke
- 20 mm
- Cushioning
- Pneumatic shock absorber at both ends | Soft characteristic curve
- Mounting position
- Guide rail | Vertical
- Mode of operation
- Double-acting
- Structural design
- Cross guide | Swivel module | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Cross guide
- Operating pressure
- 4 bar...8 bar
- Minimum cycle time
- 0.8 s
- Repetition accuracy
- ±0.01 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. torque Mx dynamic
- 2.4 Nm
- Max. static moment Mx
- 10 Nm
- Max. torque My dynamic
- 2.4 Nm
- Max. static moment My
- 10 Nm
- Max. torque Mz dynamic
- 2.4 Nm
- Max. static moment Mz
- 10 Nm
- Max. payload
- 1 kg
- Maximum process force in y direction
- 35 N
- Theoretical force at 6 bar
- 50 N
- Product weight
- 3300 g
- Front unit mounting
- With through-hole
- Type of mounting
- With through-hole
