Festo
533615

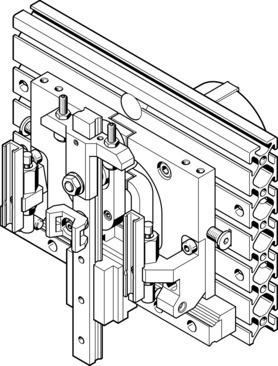

Handling module HSP-25-AP
The Festo part number 533615 is a size 25 industrial component featuring a double-acting mode of operation, a cross guide structural design with a swivel module, and positively driven motion sequences. It operates within a pressure range of 4 bar to 8 bar, delivering a repetition accuracy of ±0.02 mm and a minimum cycle time of 1 s. Cushioning is provided by pneumatic shock absorbers at both ends with a soft characteristic curve, while position sensing is managed via proximity switches. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533615
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533615.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 25
- Y-stroke
- 130 mm...170 mm
- Z-stroke
- 50 mm...70 mm
- Z working stroke
- 25 mm
- Cushioning
- Pneumatic shock absorber at both ends | Soft characteristic curve
- Mounting position
- Guide rail | Vertical
- Mode of operation
- Double-acting
- Structural design
- Cross guide | Swivel module | Positively driven motion sequence
- Position sensing
- Via proximity switch
- Protection against torsion/guide
- Cross guide
- Operating pressure
- 4 bar...8 bar
- Minimum cycle time
- 1 s
- Repetition accuracy
- ±0.02 mm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. torque Mx dynamic
- 3.2 Nm
- Max. static moment Mx
- 15 Nm
- Max. torque My dynamic
- 3.2 Nm
- Max. static moment My
- 15 Nm
- Max. torque Mz dynamic
- 3.2 Nm
- Max. static moment Mz
- 15 Nm
- Max. payload
- 1.5 kg
- Maximum process force in y direction
- 50 N
- Theoretical force at 6 bar
- 65 N
- Product weight
- 6400 g
- Front unit mounting
- With through-hole
- Type of mounting
- With through-hole
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533615. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
