Festo
533626

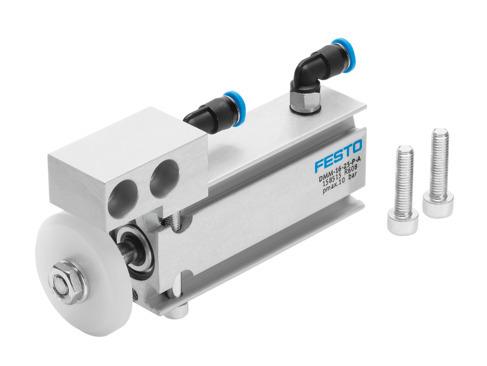

Wait position BWL-HSP-16
The Festo wait position BWL-HSP-16 is an industrial component featuring a maximum wait position module Z-stroke of 25 mm and an M5 pneumatic connection for the wait position. Constructed from anodized wrought aluminum alloy, the housing conforms to VDMA24364-B2-L LABS (PWIS) requirements. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533626
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533626.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Maximum wait position module Z-stroke
- 25 mm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Wait position pneumatic connection
- M5
- Housing material
- Wrought aluminum alloy | Anodized
- Official specification text
- Maximum wait position module Z-stroke 25 mm LABS (PWIS) conformity VDMA24364-B2-L Wait position pneumatic connection M5 Housing material Wrought aluminum alloy Anodized 6/6/26 –
- Document type
- Official Festo EN-US data sheet
- Part number
- 533626
- Product designation
- Wait position BWL-HSP-16
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 533626. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
