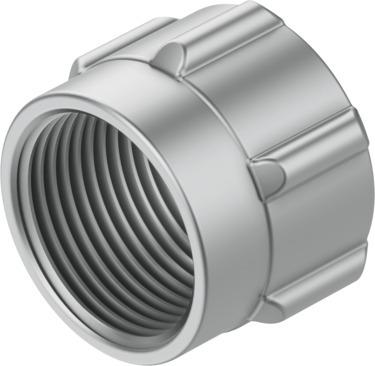

Name: Festo 533673 Union nut MCK-PK-4-KD
Brand: Festo

Union nut MCK-PK-4-KD

The Festo part number 533673 is an industrial component featuring an internal thread size of M10x1 and a pneumatic connection designed for 6 mm outside diameter pneumatic tubing or 4 mm inside diameter barbed fittings with a union nut. This component operates across a pressure range of -0.095 MPa to 1.2 MPa (-0.95 bar to 12 bar / -13.775 psi to 174 psi) and an ambient temperature range of -10 °C to 60 °C. Constructed with a nickel-plated wrought aluminum alloy union nut, it meets RoHS compliance, VDMA24364-B2-L LABS conformity, and holds a corrosion resistance class (CRC) rating of 1 for low corrosion stress. Request a quote by submitting the exact part number, quantity, and application requirements.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 533673
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 533673.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: Internal thread M10x1
Operating pressure for entire temperature range: -0.095 MPa...1.2 MPa | -0.95 bar...12 bar | -13.775 psi...174 psi
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -10 °C...60 °C
Pneumatic connection 1: For pneumatic tubing outside diameter 6 mm | For barbed tting, inside diameter 4 mm, with union nut
Material of union nut: Wrought aluminum alloy, nickel-plated
Note on materials: RoHS-compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 533673. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
