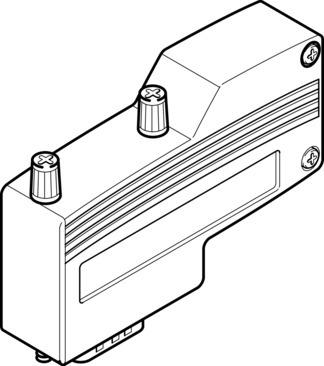

Reference imageConfirm configuration by manufacturer part number.
Festo
533783
Plug FBS-SUB-9-WS-CO-K
The Festo 533783 is an industrial component featuring a 9-pin Sub-D plug socket fieldbus interface, a 9-pin Sub-D socket electrical connection 1, and a screw terminal electrical connection 2, operating at a 1 Mbit/s baud rate. Housed in metalized plastic with an IP20 degree of protection, the unit measures 48 mm in width, 65 mm in height, and 16 mm in length, with a product weight of 46 g and 4-40 UNC-2B mounting. It supports an approved cable diameter of 8 mm, a connection cross section of 1 mm², an ambient temperature range of 0 °C to 60 °C, a storage temperature range of -25 °C to 80 °C, VDMA24364-B2-L LABS conformity, RoHS compliance, and a CRC of 1 for low corrosion stress. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 533783
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 533783.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 48 mm
- Height
- 65 mm
- Length
- 16 mm
- Type of mounting
- 4-40 UNC-2B
- Product weight
- 46 g
- Fieldbus interface
- Sub-D, 9-pin, plug socket
- Electrical connection 1
- Socket, Sub-D, 9-pin
- Electrical connection 2
- Screw terminal
- Baud rate
- 1 Mbit/s
- Approved cable diameter
- 8 mm | 8 mm
- Connection cross section
- 1 mm²
- Degree of protection
- IP20
- Ambient temperature
- 0 °C...60 °C
- Storage temperature
- -25 °C...80 °C
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS compliant
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- Housing material
- Metalized plastic
