533989

Name: Festo 533989 Air preparation combination unit MSB6N-1/2-FRC3:J7M1
Brand: Festo

Air preparation combination unit MSB6N-1/2-FRC3:J7M1

The Festo 533989 is a size 6 MS-series industrial component featuring a structural design that combines a filter regulator with a pressure gauge and a proportional standard oil mist lubricator. It offers an operating pressure range of 1.5 bar to 20 bar, a pressure regulation range of 0.3 bar to 7 bar, and a normal nominal flow rate of 4600 l/min normalized to DIN 1343. Equipped with a manual rotating condensate drain, a 5 µm grade of filtration, and a rotary knob actuator lock with an integrated lock, this unit operates with compressed air as per ISO 8573-1:2010 [-:4:-] or inert gases. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 533989
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 533989.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 6
Series: MS
Actuator lock: Rotary knob with integrated lock
Mounting position: Vertical ±5°
Grade of ltration: 5 µm
Condensate drain: Manual, rotating

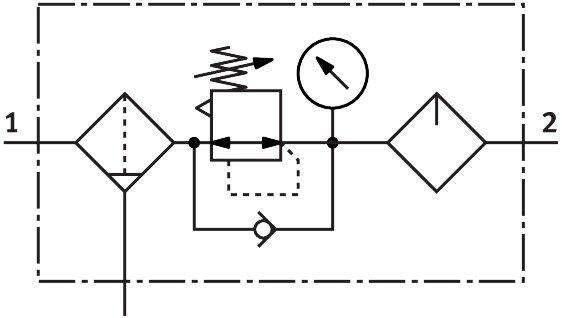

Structural design: Filter regulator with pressure gauge | Proportional standard oil mist lubricator
Controller function: Constant output pressure | With primary pressure compensation | With secondary exhausting | With return ow characteristic
Bowl guard: Plastic bowl guard
Pressure gauge: with pressure gauge
Operating pressure: 1.5 bar...20 bar
Pressure regulation range: 0.3 bar...7 bar
Normal nominal ow rate (normalized to DIN 1343): 4600 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [-:4:-] | Inert gases
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C...60 °C
For use in the food industry: See supplementary material information
Air quality class at the output: Compressed air as per ISO 8573-1:2010 [6:4:-]
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Product weight: 1495 g
Type of mounting: With accessories
Pneumatic connection 1: 1/2 NPT
Pneumatic connection 2: 1/2 NPT
Note on materials: RoHS compliant

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 533989. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
