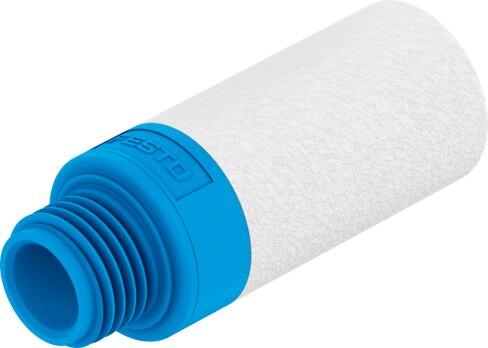

Name: Festo 534219 Pneumatic muffler UC-1/8-50
Brand: Festo

Pneumatic muffler UC-1/8-50

The Festo part number 534219 is an industrial component featuring a G1/8 pneumatic connection, a flow rate of 1700 l/min with respect to atmosphere, and an operating pressure range from 0 MPa to 1 MPa (0 bar to 10 bar). Designed with any mounting position and a product weight of 2.6 g, this RoHS compliant unit operates with compressed air as per ISO 8573-1:2010 [7:-:-], accommodates lubricated operation, and maintains a noise level of 59 dB(A) across an ambient temperature range of -10 °C to 70 °C. Each pack size contains 50 units featuring VDMA24364-B1/B2-L LABS conformity alongside protective grounding cushioning insert and screwed plug materials. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 534219
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 534219.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Pack size: 50
Operating pressure: 0 MPa...1 MPa | 0 bar...10 bar
Flow rate with respect to atmosphere: 1700 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
Information on operating and pilot media: Lubricated operation possible
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Noise level: 59 dB(A)
Ambient temperature: -10 °C...70 °C
Product weight: 2.6 g
Pneumatic connection: G1/8
Cushioning insert material: Protective grounding
Material of screwed plug: Protective grounding
Note on materials: RoHS compliant
