Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

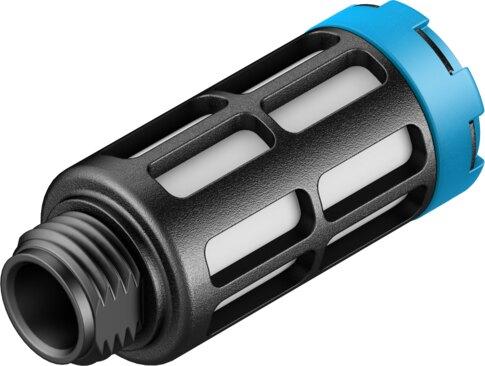

Reference imageConfirm configuration by manufacturer part number.
Festo
534222
Pneumatic muffler U-1/8-50
The Festo part number 534222 is an industrial component featuring a G1/8 pneumatic connection, an operating pressure range of 0 MPa to 1 MPa (0 bar to 10 bar), and a flow rate with respect to atmosphere of 2000 l/min. This RoHS compliant product operates with compressed air as per ISO 8573-1:2010 [7:-:-], allows lubricated operation, and exhibits a VDMA24364-B1/B2-L LABS conformity with a noise level of 74 dB(A). Weighing 2.3 g with an ambient temperature range of -10 °C to 70 °C, any mounting position, protective grounding cushioning insert material, and a pack size of 50, it is ready for integration. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 534222
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 534222.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pack size
- 50
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 2000 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 74 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 2.3 g
- Pneumatic connection
- G1/8
- Cushioning insert material
- Protective grounding
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 534222. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
