Festo
534223

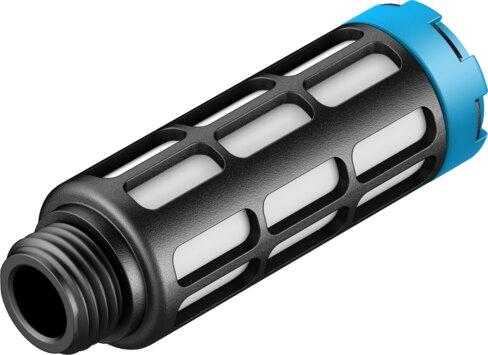

Pneumatic muffler U-1/4-20
The Festo 534223 industrial component features a G1/4 pneumatic connection and operates within a pressure range of 0 MPa to 1 MPa (0 bar to 10 bar) using compressed air as per ISO 8573-1:2010 [7:-:-], with lubricated operation possible. This RoHS-compliant part weighs 7.7 g, offers a flow rate with respect to atmosphere of 3300 l/min, and functions at an ambient temperature of -10 °C to 70 °C with a noise level of 76 dB(A). Featuring a mounting position in any orientation, VDMA24364-B1/B2-L LABS conformity, and protective grounding cushioning insert material, this pack size of 20 is available now. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 534223
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 534223.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pack size
- 20
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 3300 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 76 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 7.7 g
- Pneumatic connection
- G1/4
- Cushioning insert material
- Protective grounding
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 534223. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
