Festo
534225

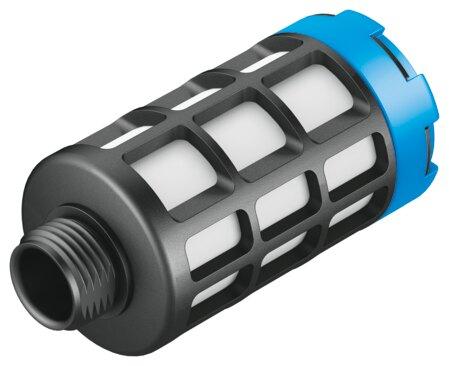

Pneumatic muffler U-1/2-20
The Festo 534225 is an industrial component with a G1/2 pneumatic connection, an operating pressure range of 0 MPa to 1 MPa (0 bar to 10 bar), and a flow rate with respect to atmosphere of 10300 l/min. Featuring a product weight of 58.2 g, this part operates within an ambient temperature range of -10 °C to 70 °C using compressed air as per ISO 8573-1:2010 [7:-:-], with lubricated operation possible and protective grounding used for the cushioning insert material. Each pack size contains 20 units featuring any mounting position, VDMA24364-B1/B2-L LABS conformity, an 82 dB(A) noise level, and RoHS compliant materials. Submit the exact part number, quantity, and application requirements to receive a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 534225
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 534225.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Mounting position
- Any
- Pack size
- 20
- Operating pressure
- 0 MPa...1 MPa | 0 bar...10 bar
- Flow rate with respect to atmosphere
- 10300 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Noise level
- 82 dB(A)
- Ambient temperature
- -10 °C...70 °C
- Product weight
- 58.2 g
- Pneumatic connection
- G1/2
- Cushioning insert material
- Protective grounding
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 534225. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
