Festo
534231

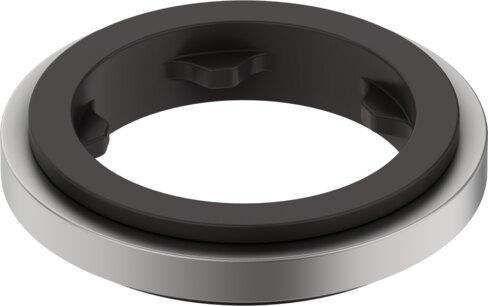

Sealing ring OL-M5-500
This Festo industrial component, part number 534231, is built to ISO 16030 norms with an M5 pneumatic connection and operates within a pressure range of -0.095 MPa to 3 MPa (-0.95 bar to 30 bar, -13.775 psi to 435 psi) across an ambient temperature range of -40 °C to 100 °C. The unit features aluminum stops, HNBR seals, and a corrosion resistance class of CRC 2, while complying with VDMA24364-B2-L LABS conformity and RoHS material regulations. Designed with F1a reduced Cu/Zn/Ni values for Li-ion battery production suitability, it requires a nominal tightening torque of 2.5 Nm with a ±20% tolerance and manual tightening capability at room temperature. Submit the exact part number, quantity, and application requirements to request a quote for this pack size of 500.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 534231
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 534231.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- ISO 16030
- Pack size
- 500
- Operating pressure for entire temperature range
- -0.095 MPa...3 MPa | -0.95 bar...30 bar | -13.775 psi...435 psi
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- Ambient temperature
- -40 °C...100 °C
- Manual tightening at RT
- Yes
- Nominal tightening torque
- 2.5 Nm
- Tolerance for nominal tightening torque
- ±20%
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Stops material
- Aluminum
- Seals material
- HNBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 534231. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
