Festo
534310

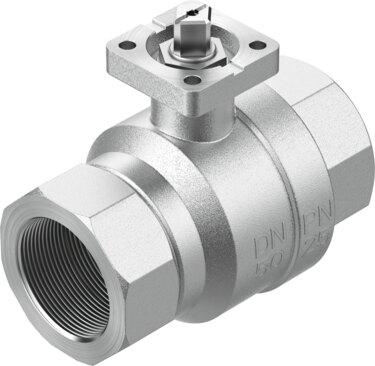

Ball valve VAPB-2 1/2-F-25-F07
The Festo 534310 is a mechanical 2-way soft-sealing ball valve featuring a 2/2 valve function, a nominal width DN of 65, and an inside diameter of 63 mm with an Rp2 1/2 fitting connection. Designed for in-line installation in any mounting position, this component operates with a reversible flow direction and handles a nominal pressure PN of 25 with a flow rate Kv of 535 m³/h for compressed air, inert gas, water, and neutral liquids across a medium temperature range of -20 °C to 150 °C. The assembly integrates an ISO 5211 compliant F07 flange hole pattern requiring a breakaway torque of 45 Nm at nominal pressure PN and features a slot direction matching the flow direction for switching position indication. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 534310
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 534310.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- 2-way ball valve
- Actuation type
- Mechanical
- Sealing principle
- Soft
- Mounting position
- Any
- Type of mounting
- In-line installation
- Fitting connection
- Rp2 1/2
- Switching position indication
- Slot direction = ow direction
- Flange hole pattern
- F07
- Inside diameter
- 63 mm
- Nominal width DN
- 65
- Valve function
- 2/2
- Flow direction
- Reversible
- Nominal pressure of tting PN
- 25
- Breakaway torque at differential pressure, nominal pressure, tting PN
- 45 Nm
- Breakaway torque at 10 bar differential pressure
- 33 Nm
- Based on norm
- ISO 5211
- Medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Inert gas | Water | Neutral liquids
- Temperature of medium
- -20 °C...150 °C
- Flow rate Kv
- 535 m³/h
- Note on materials
- RoHS compliant
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Housing material
- Brass, nickel-plated
- Material number of housing
- 2,0402
