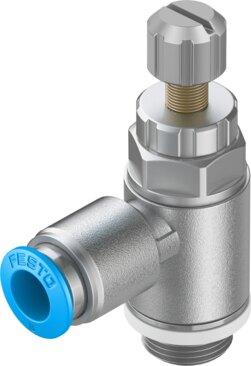

Name: Festo 534338 One-way flow control valve GRLA-1/4-QS-6-RS-D
Brand: Festo

One-way flow control valve GRLA-1/4-QS-6-RS-D

The Festo part number 534338 is a one-way flow control valve featuring a QS-6 pneumatic connection 1, a G1/4 pneumatic connection 2, and a knurled screw adjusting element for screw-in mounting with an external thread. It operates within a pressure range of 0.2 bar to 10 bar across an ambient and medium temperature range of -10 °C to 60 °C, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] with provisions for oil lubrication. The component delivers a standard nominal flow rate of 400 l/min in the flow control direction and 290 l/min to 420 l/min in the non-return direction, while maintaining VDMA24364-B1/B2-L LABS conformity and ISO 14644-1 Class 4 cleanroom suitability. Submit the exact part number, quantity, and application requirements to receive an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 534338
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 534338.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: One-way ow control function
Pneumatic connection 1: QS-6
Pneumatic connection 2: G1/4
Adjusting element: Knurled screw
Type of mounting: Screw-in | With external thread
Standard nominal ow rate in ow control direction: 400 l/min
Standard nominal ow rate in non-return direction: 290 l/min...420 l/min
Operating pressure: 0.2 bar...10 bar
Ambient temperature: -10 °C...60 °C
Maritime classication: See certicate
Mounting position: Any
Operating pressure for entire temperature range: 0.2 bar...10 bar
Standard ow rate in ow control direction 6 -> 0 bar: 600 l/min
Standard ow rate in non-return direction at 6 -> 0 bar: 570 l/min...680 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 4 according to ISO 14644-1
Storage temperature: -10 °C...40 °C
Temperature of medium: -10 °C...60 °C
Nominal tightening torque: 5 Nm
Product weight: 50 g
Note on materials: RoHS compliant
Seals material: NBR
Hollow bolt material: Wrought aluminum alloy | Anodized
