Festo
534494

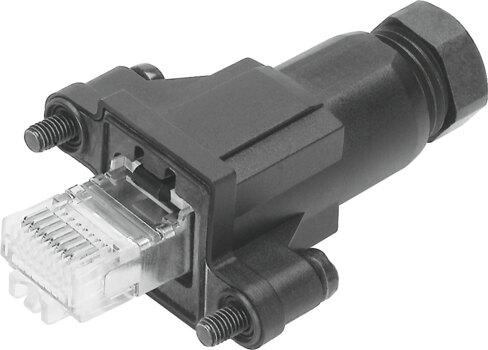

Plug FBS-RJ45-8-GS
The Festo industrial component, part number 534494, features a reinforced polyamide housing with steel screws and NBR seals, measuring 33 mm in width, 41 mm in height, 20 mm in length, and weighing 15 g. Designed for CAT.5 Ethernet cables with individual wire diameters of 0.89 to 0.99 mm (AWG 24-26, fine wire) and cable diameters between 4 mm and 5.4 mm, this unit provides IP65 and IP67 degrees of protection as per IEC 60529 alongside PELV protection against direct and indirect contact. It operates within an ambient temperature range of -5 °C to 60 °C, a storage temperature range of -20 °C to 70 °C, 0 to 90% non-condensing relative air humidity, and satisfies VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 534494
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 534494.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 33 mm
- Height
- 41 mm
- Length
- 20 mm
- Product weight
- 15 g
- Ethernet cable specication
- Type: CAT.5 | Individual wire diameter: 0.89 - 0.99 mm | AWG 24-26, ne wire
- Protection against direct and indirect contact
- PELV
- Approved cable diameter
- 4 mm...5.4 mm
- Degree of protection
- IP65 | IP67 | As per IEC 60529
- Ambient temperature
- -5 °C...60 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 0 - 90% | Non-condensating
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- PA-reinforced
- Material of screws
- Steel
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 534494. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
