Festo
534497

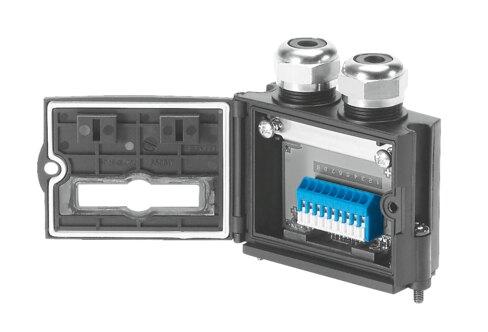

Plug FBS-SUB-9-GS-1X9POL-B
Manufactured by Festo with part number 534497, this industrial component measures 20 mm in width, 62 mm in height, and 61 mm in length, featuring a product weight of 60 g. The PA-reinforced housing integrates a fieldbus interface with 1x 9 spring-loaded terminals, brass union nut, steel screws, and NBR seals supporting an approved cable diameter of 5 mm to 10 mm. It delivers IP65 and IP67 protection ratings in the mounted state as per IEC 60529, operating within an ambient temperature range of 0 °C to 50 °C, storage temperatures from -20 °C to 70 °C, 95% non-condensating relative air humidity, and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 534497
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 534497.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 20 mm
- Height
- 62 mm
- Length
- 61 mm
- Product weight
- 60 g
- Fieldbus interface
- 1x 9 spring-loaded terminals
- Approved cable diameter
- 5 mm...10 mm
- Degree of protection
- IP65 | IP67 | In mounted state | As per IEC 60529
- Ambient temperature
- 0 °C...50 °C
- Storage temperature
- -20 °C...70 °C
- Relative air humidity
- 95% | Non-condensating
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Housing material
- PA-reinforced
- Material of union nut
- Brass
- Material of screws
- Steel
- Seals material
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 534497. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
