534525

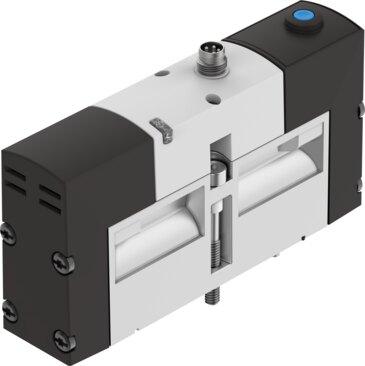

Name: Festo 534525 Air solenoid valve VSVA-B-M52-AZH-A1-1R2L
Brand: Festo

Air solenoid valve VSVA-B-M52-AZH-A1-1R2L

The Festo part number 534525 is a 26 mm wide electrical 5/2-way monostable industrial component featuring a piston gate valve structural design and a pneumatic spring reset method. It delivers a normal nominal flow rate of 1100 l/min across an operating pressure range of -0.09 MPa to 1.6 MPa, utilizing a 24V DC operating voltage and providing IP65 and NEMA 4 protection. Built with a soft sealing principle and ISO 15407-1 sub-base pneumatic working ports, this unit includes non-detenting manual override and adjustable exhaust air functions via a throttle plate or individual sub-base. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 534525
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 534525.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, monostable
Actuation type: Electrical
Width: 26 mm
Normal nominal ow rate (normalized to DIN 1343): 1100 l/min
Pneumatic working port: Sub-base, size 26 mm according to ISO 15407-1
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Degree of protection: IP65 | NEMA 4
Nominal width: 9 mm
Width dimension: 27 mm
Exhaust air function: Adjustable | Via throttle plate | Via individual sub-base
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 15407-1
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Any
Lap: Positive overlap
Reverse polarity protection: for all electrical connections
Additional functions: Holding current reduction | Safety shut-oﬀ

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 534525. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
