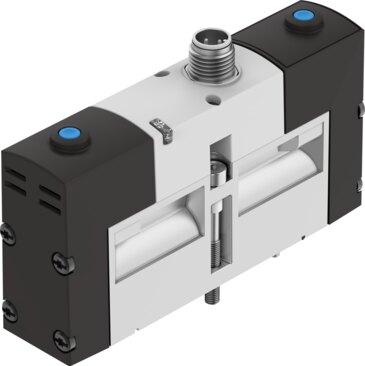

Name: Festo 534547 Air solenoid valve VSVA-B-B52-ZH-A1-1R5L
Brand: Festo

Air solenoid valve VSVA-B-B52-ZH-A1-1R5L

The Festo 534547 is an electrical 5/2-way bistable industrial component featuring a piston gate valve structural design with a 26 mm width and a nominal width of 9 mm. Operating at 24V DC across a pressure range of -0.09 MPa to 1.6 MPa, it delivers a normal nominal flow rate of 1100 l/min through an ISO 15407-1 compliant 26 mm sub-base pneumatic working port. Built with IP65 and NEMA 4 protection degrees, soft sealing, and adjustable exhaust air functions, this unit includes non-detenting manual override and pilot control while carrying c UL us, RCM, CE, and UKCA conformity markings. Submit the exact part number, quantity, and application requirements for an official quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 534547
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 534547.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Width: 26 mm
Normal nominal ow rate (normalized to DIN 1343): 1100 l/min
Pneumatic working port: Sub-base, size 26 mm according to ISO 15407-1
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1.6 MPa | -0.9 bar...16 bar
Structural design: Piston gate valve
Certication: RCM compliance mark | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Degree of protection: IP65 | NEMA 4
Nominal width: 9 mm
Width dimension: 27 mm
Exhaust air function: Adjustable | Via throttle plate | Via individual sub-base
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 15407-1
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Any
Lap: Positive overlap
Reverse polarity protection: for all electrical connections
Additional functions: Holding current reduction | Safety shut-oﬀ
Signal status display: LED

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 534547. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
