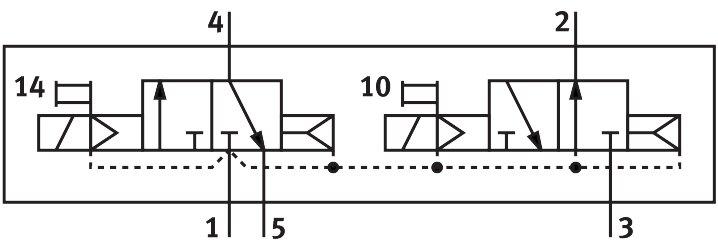

Reference imageConfirm configuration by manufacturer part number.
Festo
534554
Air solenoid valve VSVA-B-T32H-AH-A1-1R5L
The Festo 534554 is an electrical 2x3/2 open/closed monostable piston gate valve featuring a soft sealing principle and an ISO 15407-1 size 26 mm sub-base pneumatic working port. Operating at 24V DC within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), this component delivers a normal nominal flow rate of 900 l/min across a 9 mm nominal width and a 26 mm width dimension. It incorporates a pneumatic spring reset method, non-detenting manual override, adjustable exhaust air function via a throttle plate or individual sub-base, and an IP65/NEMA 4 degree of protection with RCM, c UL us, CE, and UKCA compliance. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 534554
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 534554.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2, open/closed, monostable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 900 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Pneumatic spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 9 mm
- Width dimension
- 27 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15407-1
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Reverse polarity protection
- for all electrical connections
- Additional functions
- Holding current reduction | Safety shut-off
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 534554. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
