Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

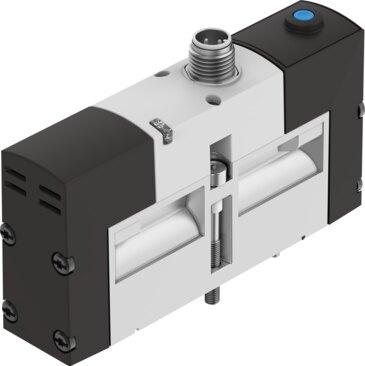

Reference imageConfirm configuration by manufacturer part number.
Festo
534556
Air solenoid valve VSVA-B-M52-MH-A1-1R5L
The Festo 534556 is a 26 mm wide industrial component featuring a 5/2-way monostable valve function and a piston gate valve structural design with a soft sealing principle. Operating on 24V DC within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), this electrically actuated unit delivers a normal nominal flow rate of 1100 l/min through a sub-base pneumatic working port compliant with ISO 15407-1. Equipped with mechanical spring reset, non-detenting manual override, and adjustable exhaust air function, the assembly holds an IP65 and NEMA 4 degree of protection alongside RCM, c UL us, CE, and UKCA certifications. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 534556
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 534556.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 9 mm
- Width dimension
- 27 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15407-1
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Reverse polarity protection
- for all electrical connections
- Additional functions
- Holding current reduction | Safety shut-off
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 534556. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
