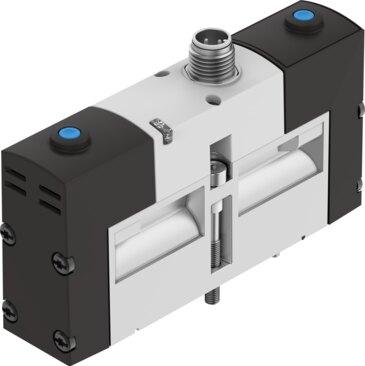

Reference imageConfirm configuration by manufacturer part number.
Festo
534558
Air solenoid valve VSVA-B-D52-H-A1-1R5L
The Festo 534558 is a 26 mm wide electrical 5/2-way bistable dominant piston gate valve featuring a piloted type of control and soft sealing principle. It delivers a normal nominal flow rate of 1100 l/min at an operating pressure ranging from 0.3 MPa to 0.8 MPa (3 bar to 8 bar) with a 24V DC operating voltage. Built to ISO 15407-1 standards with an IP65 and NEMA 4 degree of protection, this component includes a non-detenting manual override and sub-base pneumatic working ports. Submit your exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 534558
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 534558.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, dominant, bistable
- Actuation type
- Electrical
- Width
- 26 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1100 l/min
- Pneumatic working port
- Sub-base, size 26 mm according to ISO 15407-1
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Certication
- RCM compliance mark | c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Degree of protection
- IP65 | NEMA 4
- Nominal width
- 9 mm
- Width dimension
- 27 mm
- Exhaust air function
- Adjustable | Via throttle plate | Via individual sub-base
- Sealing principle
- Soft
- Mounting position
- Any
- Conforms to standard
- ISO 15407-1
- Manual override
- Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Non-reversible
- Lap
- Positive overlap
- Reverse polarity protection
- for all electrical connections
- Additional functions
- Holding current reduction | Safety shut-off
- Signal status display
- LED
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 534558. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
