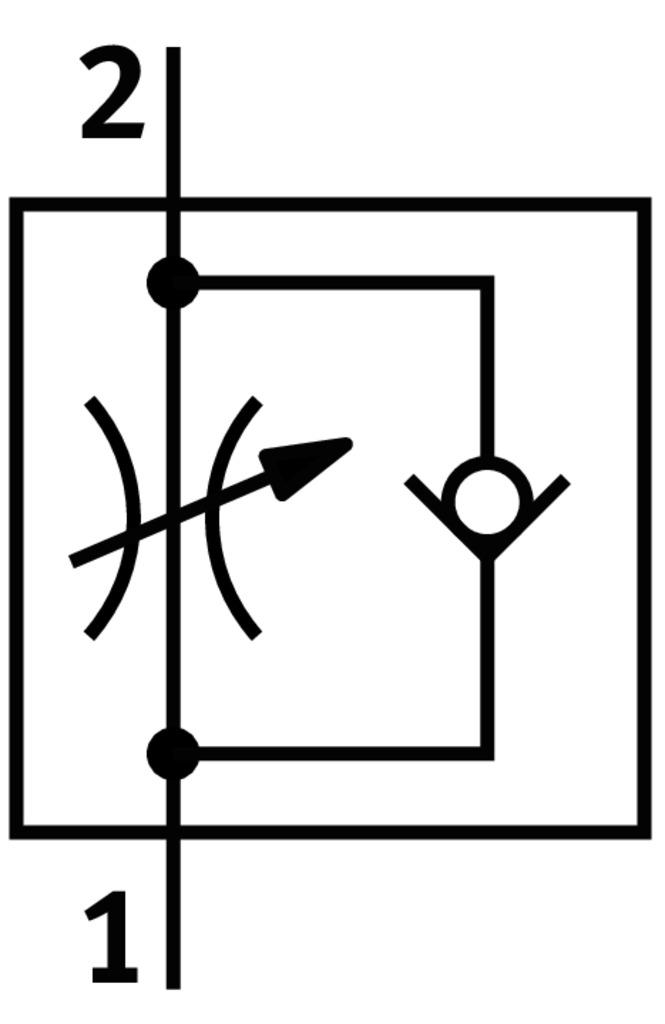

Reference imageConfirm configuration by manufacturer part number.
Festo
534657
One-way flow control valve GRLA-1/8-QB-3/16-U
The Festo part number 534657 is an industrial component featuring an exhaust air flow control non-return function, a QB-3/16 pneumatic connection 1, and a 1/8 NPT pneumatic connection 2. It utilizes a manual actuation type with a slotted screw adjusting element and screw-in external thread mounting, constructed with a nickel-plated brass screwed plug weighing 0,66 oz. This unit operates within a temperature range of 32 °F to 140 °F, an operating pressure of -13,8 psi to 116 psi, and accommodates compressed air as per ISO 8573-1:2010 [7:4:4] with possible oil lubrication. Please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 534657
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 534657.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Exhaust air flow control non-return function
- Pneumatic connection 1
- QB-3/16
- Pneumatic connection 2
- 1/8 NPT
- Actuation type
- Manual
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in | With external thread
- Standard nominal flow rate in flow control direction
- 30,4 cfm
- Standard nominal flow rate in non-return direction
- 23,5 cfm...31,1 cfm
- Ambient temperature
- 32 °F...140 °F
- Mounting position
- Any
- Operating pressure for entire temperature range
- -13,8 psi...116 psi
- Standard flow rate in flow control direction 6 -> 0 bar
- 48,9 cfm
- Standard flow rate in non-return direction at 6 -> 0 bar
- 48,9 cfm...50,7 cfm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 zone III
- Temperature of medium
- 32 °F...140 °F
- Max. tightening torque
- 5,2 ft-lbf
- Product weight
- 0,66 oz
- Material of screwed plug
- Brass | Nickel-plated
- Note on materials
- RoHS-compliant
- Seals material
- NBR
- Hollow bolt material
- Brass | Nickel-plated
- Releasing ring material
- POM
