Festo
534662

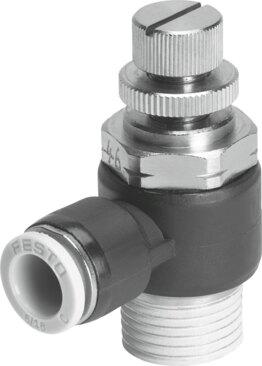

One-way flow control valve GRLA-1/4-QB-5/16-U
This Festo industrial component, part number 534662, is an exhaust air flow control non-return valve featuring a QB-5/16 pneumatic connection 1, a 1/4 NPT pneumatic connection 2, a manual slotted screw adjusting element, and a nickel-plated brass screwed plug with a maximum tightening torque of 8.9 ft-lbf. The unit provides a standard nominal flow rate of 83.9 cfm in the flow control direction, a standard nominal flow rate ranging from 64.5 cfm to 85.7 cfm in the non-return direction, and operates within a pressure range of -13.8 psi to 116 psi at ambient and medium temperatures between 32 °F and 140 °F. Designed for screw-in mounting with an external thread in any mounting position, the 1.33 oz component utilizes compressed air per ISO 8573-1:2010 [7:4:4] with possible oil lubrication and conforms to VDMA24364 Zone III LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 534662
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 534662.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- Exhaust air ow control non-return function
- Pneumatic connection 1
- QB-5/16
- Pneumatic connection 2
- 1/4 NPT
- Actuation type
- Manual
- Adjusting element
- Slotted screw
- Type of mounting
- Screw-in | With external thread
- Standard nominal ow rate in ow control direction
- 83.9 cfm
- Standard nominal ow rate in non-return direction
- 64.5 cfm...85.7 cfm
- Ambient temperature
- 32 °F...140 °F
- Mounting position
- Any
- Operating pressure for entire temperature range
- -13.8 psi...116 psi
- Standard ow rate in ow control direction 6 -> 0 bar
- 141 cfm
- Standard ow rate in non-return direction at 6 -> 0 bar
- 141 cfm...146 cfm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- 32 °F...140 °F
- Max. tightening torque
- 8.9 ft-lbf
- Product weight
- 1.33 oz
- Material of screwed plug
- Brass | Nickel-plated
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Hollow bolt material
- Brass | Nickel-plated
- Releasing ring material
- POM
