Festo
534682

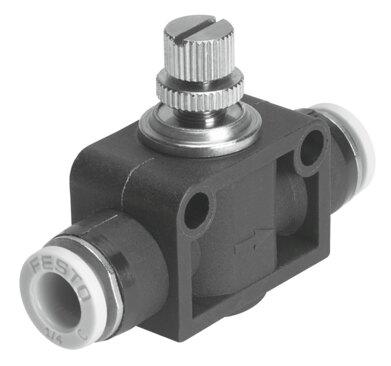

One-way flow control valve GR-QB-1/4-U
The Festo 534682 is a one-way flow control industrial component featuring QB-1/4 pneumatic connections on both ports and a manual actuation type with a slotted screw adjusting element. Built with a PBT-reinforced housing and a nickel-plated brass screwed plug, this part weighs 1 oz and supports in-line installation or through-hole mounting in any position. It delivers a standard nominal flow rate of 21.1 cfm in the flow control direction and operates within a pressure range of -13.8 psi to 116 psi using compressed air per ISO 8573-1:2010 [7:4:4] across an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 534682
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 534682.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- One-way ow control function
- Pneumatic connection 1
- QB-1/4
- Pneumatic connection 2
- QB-1/4
- Actuation type
- Manual
- Adjusting element
- Slotted screw
- Type of mounting
- Alternatively: | In-line installation | With through-hole
- Standard nominal ow rate in ow control direction
- 21.1 cfm
- Standard nominal ow rate in non-return direction
- 22.4 cfm...24.7 cfm
- Operating pressure
- -13.8 psi...116 psi
- Ambient temperature
- 0 °C...60 °C
- Housing material
- PBT-reinforced
- Mounting position
- Any
- Standard ow rate in ow control direction 6 -> 0 bar
- 35 cfm
- Standard ow rate in non-return direction at 6 -> 0 bar
- 47.6 cfm...48 cfm
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Temperature of medium
- 32 °F...140 °F
- Product weight
- 1 oz
- Material of screwed plug
- Brass | Nickel-plated
- Note on materials
- RoHS compliant
- Seals material
- NBR
- Releasing ring material
- POM
- Knurled head material
- Brass
