Name: Festo 534769 Guided drive DFM-50- -B
Brand: Festo

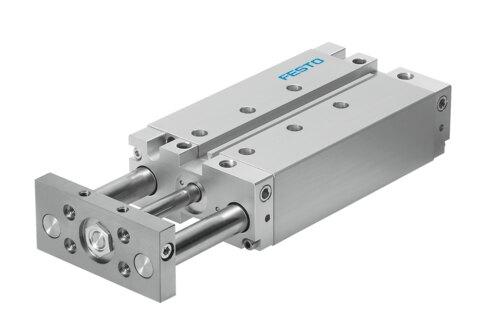

Guided drive DFM-50- -B

This Festo industrial component features a 50 mm piston diameter, a 25 mm to 400 mm stroke, and a double-acting yoke drive unit operating mode with elastic cushioning, adjustable pneumatic cushioning, or a soft characteristic curve pneumatic shock absorber at both ends. It includes a plain-bearing or recirculating ball bearing guide, position sensing via proximity switch, and ATEX and UKCA certifications for Zone 1 and Zone 2 gas explosive environments within a temperature range of -20°C to +70°C. Operating between 1 bar and 10 bar using compressed air, the structural design accommodates any mounting position and offers options for heat-resistant seals up to 120°C and oil lubrication. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 534769
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 534769.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 25 mm...400 mm
Piston diameter: 50 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends | Pneumatic cushioning, adjustable at both ends | Pneumatic shock absorber, soft characteristic curve
Mounting position: Any
Guide: Plain-bearing guide | Recirculating ball bearing
Structural design: Guide
Position sensing: Via proximity switch
Variants: Heat-resistant seals max. 120°C
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Mode of operation: Double-acting
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX)
ATEX category gas: II 2G
Type of ignition protection for gas: Ex h IIC T4 Gb
Explosive ambient temperature: -20°C <= Ta <= +70°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress | 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...120 °C
Impact energy in the end positions: 0.5 J...1 J
Theoretical force at 6 bar, retracting: 1057 N
Theoretical force at 6 bar, advancing: 1178 N
Alternative connections: See product drawing
Pneumatic connection: G1/4
