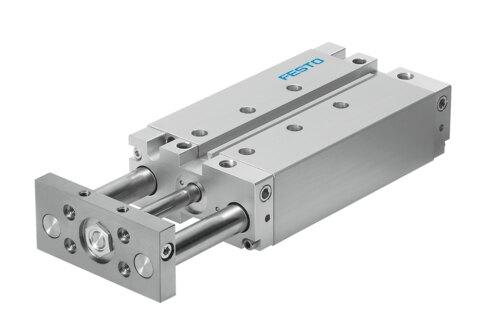

Name: Festo 534770 Guided drive DFM-63- -B
Brand: Festo

Guided drive DFM-63- -B

The Festo part number 534770 is a double-acting industrial drive unit featuring a 63 mm piston diameter, a stroke length ranging from 25 mm to 400 mm, and a yoke operating mode. Built with a structural guide design available with plain-bearing or recirculating ball bearing guides, this component supports any mounting position and utilizes elastic cushioning, adjustable pneumatic cushioning, or pneumatic shock absorbers with a soft characteristic curve at both ends. It operates within a pressure range of 0.1 MPa to 1 MPa (1 bar to 10 bar) using compressed air conforming to ISO 8573-1:2010 [7:4:4], and includes ATEX and UKCA markings for Zone 1 and Zone 2 gas explosion protection with a classification of Ex h IIC T4 Gb for explosive ambient temperatures between -20°C and +70°C. Submit your exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 534770
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 534770.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 25 mm...400 mm
Piston diameter: 63 mm
Drive unit operating mode: Yoke
Cushioning: Elastic cushioning rings/pads at both ends | Pneumatic cushioning, adjustable at both ends | Pneumatic shock absorber, soft characteristic curve
Mounting position: Any
Guide: Plain-bearing guide | Recirculating ball bearing
Structural design: Guide
Position sensing: Via proximity switch
Variants: Heat-resistant seals max. 120°C
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Mode of operation: Double-acting
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX)
ATEX category gas: II 2G
Type of ignition protection for gas: Ex h IIC T4 Gb
Explosive ambient temperature: -20°C <= Ta <= +70°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress | 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Ambient temperature: -20 °C...120 °C
Impact energy in the end positions: 0.65 J...1.3 J
Theoretical force at 6 bar, retracting: 1750 N
Theoretical force at 6 bar, advancing: 1870 N
Alternative connections: See product drawing
Pneumatic connection: G1/4
