Name: Festo 534771 Air solenoid valve VSVA-B-T32C-AH-A2-1R2L
Brand: Festo

Air solenoid valve VSVA-B-T32C-AH-A2-1R2L

The Festo 534771 is an 18 mm wide electrical industrial component featuring a 2x3/2 closed, monostable piston gate valve design with piloted control and a pneumatic spring reset method. This unit delivers a normal nominal flow rate of 400 l/min at an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) and operates on 24V DC. Built with an IP65 degree of protection, soft sealing principle, adjustable exhaust air function, and non-detenting manual override, it conforms to ISO 15407-1 and VDMA 24563 standards with sub-base size 18 mm and connecting plate size 02 ports. It carries C-Tick and c UL us-recognized (OL) certifications alongside CE and UKCA markings per EU and UK EMC and RoHS instructions for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 534771
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 534771.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

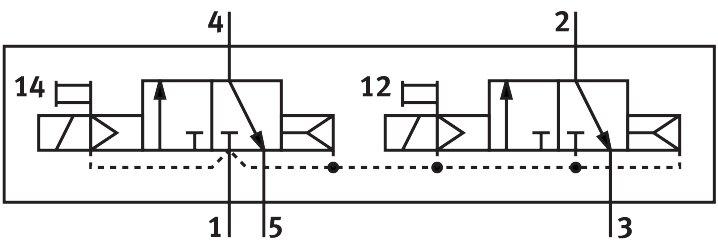

Valve function: 2x3/2 closed, monostable
Actuation type: Electrical
Width: 18 mm
Normal nominal ow rate (normalized to DIN 1343): 400 l/min
Pneumatic working port: Sub-base, size 18 mm as per ISO 15407-1 | Connecting plate size 02 according to VDMA 24563
Operating voltage: 24V DC
Operating pressure: 0.3 MPa...0.8 MPa | 3 bar...8 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: C-Tick | c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Degree of protection: IP65
Nominal width: 5 mm
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Conforms to standard: ISO 15407-1 | VDMA 24563
Manual override: Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
Reverse polarity protection: for all electrical connections
Additional functions: Holding current reduction | Safety shut-oﬀ
Signal status display: LED
Flow rate of pneumatic valve: 600 l/min
