535035

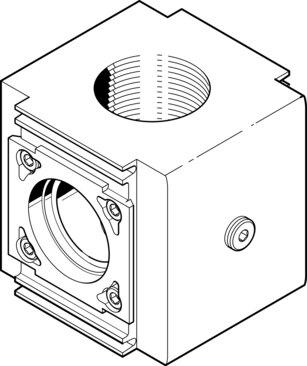

Name: Festo 535035 Branching module MS12-FRM
Brand: Festo

Branching module MS12-FRM

The Festo part number 535035 is an industrial branching module featuring a robust die-cast aluminum sub-base, housing, mounting bracket, and module connector with NBR seals. It operates within a pressure range of 0 bar to 20 bar using compressed air as per ISO 8573-1:2010 [-:-:-], delivering a standard nominal flow rate of 25000 l/min to 42000 l/min in the main flow direction 1 to 2. This component provides a G1 pneumatic connection 4, a CRC rating of 2 for moderate corrosion stress, VDMA24364-B1/B2-L LABS conformity, and supports any mounting position via in-line installation or accessories across storage, medium, and ambient temperatures of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 535035
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 535035.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Structural design: Branching module
Operating pressure: 0 bar...20 bar
Standard nominal ow rate in main ow direction 1 -> 2: 25000 l/min...42000 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-]
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C...60 °C
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Type of mounting: In-line installation | With accessories
Pneumatic connection 4: G1
Material of sub-base: Die-cast aluminum
Material of mounting bracket: Die-cast aluminum
Seals material: NBR
Housing material: Die-cast aluminum
Module connector material: Die-cast aluminum

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 535035. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
