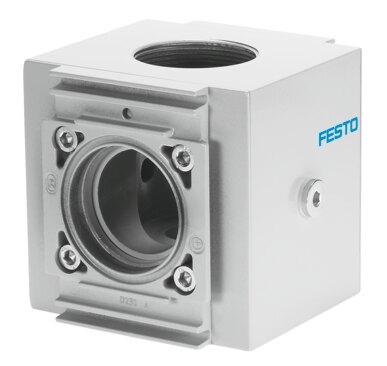

Name: Festo 535040 Branching module MS12N-FRM
Brand: Festo

Branching module MS12N-FRM

The Festo part number 535040 is an industrial branching module featuring a die-cast aluminum sub-base, housing, mounting bracket, and module connector, equipped with NBR seals and a 1 NPT pneumatic connection 4. This component operates with compressed air as per ISO 8573-1:2010 [-:-:-] across an operating pressure range of 0 bar to 20 bar and a standard nominal flow rate in the main flow direction 1 to 2 from 25000 l/min to 42000 l/min. It supports any mounting position via in-line installation or with accessories, and exhibits a corrosion resistance class of CRC 2 along with VDMA24364-B1/B2-L LABS conformity for storage, medium, and ambient temperatures spanning -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this Festo component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 535040
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 535040.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Structural design: Branching module
Operating pressure: 0 bar...20 bar
Standard nominal ow rate in main ow direction 1 -> 2: 25000 l/min...42000 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-]
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -10 °C...60 °C
Temperature of medium: -10 °C...60 °C
Ambient temperature: -10 °C...60 °C
Type of mounting: In-line installation | With accessories
Pneumatic connection 4: 1 NPT
Material of sub-base: Die-cast aluminum
Material of mounting bracket: Die-cast aluminum
Seals material: NBR
Housing material: Die-cast aluminum
Module connector material: Die-cast aluminum
