535411

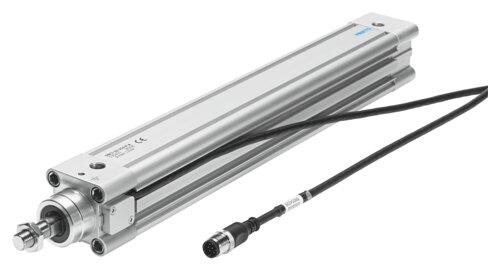

Name: Festo 535411 ISO cylinder DNCI-32- -
Brand: Festo

ISO cylinder DNCI-32- -

Manufactured by Festo, part number 535411 is an industrial component based on the ISO 15552 norm featuring a 32 mm piston diameter and a stroke range from 10 mm to 2000 mm. This structural design includes a piston, piston rod, and profile barrel with dual flat piston rod torsion protection, elastic cushioning rings at both ends, and an integrated digital linear potentiometer for position sensing. It operates at a maximum pressure of 1.2 MPa (12 bar / 174 psi), with a maximum travel speed of 1.5 m/s and a minimum travel speed of 0.05 m/s. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 535411
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 535411.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 10 mm...2000 mm
Stroke, servopneumatic positioning: 100 mm...500 mm
Soft Stop stroke: 100 mm...500 mm
Stroke reduction in the end positions: >= 10 mm
Shortest positioning stroke: 3% of max. stroke | But maximum 20 mm
Piston diameter: 32 mm
Based on norm: ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position, positioning: Any
Mounting position, Soft Stop: Any
Measuring principle of linear potentiometer: digital
Structural design: Piston | Piston rod | Prole barrel
Position sensing: Via proximity switch | With integrated linear potentiometer
Variants: Clamping unit attached | Extended piston rod | Piston rod at one end | With two measuring heads
Protection against torsion/guide: Dual at piston rod
Operating pressure: 1.2 MPa | 12 bar | 174 psi
Operating pressure for positioning/soft stop: 4 bar...8 bar
Max. travel speed: 1.5 m/s
Min. travel speed: 0.05 m/s
Typical positioning time, short-stroke, horizontal: 0.35/0.55 s
Typical positioning time, long stroke, horizontal: 0.45/0.7 s
Mode of operation: Double-acting
Nominal operating voltage DC: 5 V
CE marking (see declaration of conformity): As per EU EMC directive

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 535411. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
