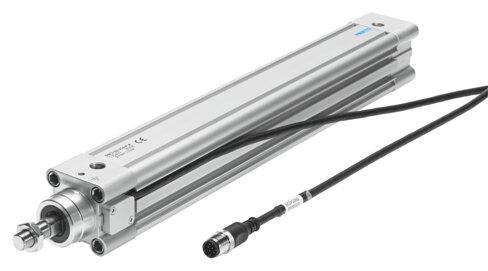

Reference imageConfirm configuration by manufacturer part number.
Festo
535412
ISO cylinder DNCI-40- -
The Festo 535412 is an industrial component adhering to ISO 15552 norms, featuring a 40 mm piston diameter, a stroke range from 10 mm to 2000 mm, and dual flat piston rod torsion protection. This structural design incorporates a profile barrel, elastic cushioning rings at both ends, an integrated digital linear potentiometer for position sensing, and an operating pressure capacity up to 1.2 MPa (174 psi). It supports servopneumatic positioning and Soft Stop strokes between 100 mm and 500 mm, achieving travel speeds from 0.05 m/s to 1.5 m/s in any mounting position. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535412
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535412.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 10 mm...2000 mm
- Stroke, servopneumatic positioning
- 100 mm...500 mm
- Soft Stop stroke
- 100 mm...500 mm
- Stroke reduction in the end positions
- >= 10 mm
- Shortest positioning stroke
- 3% of max. stroke | But maximum 20 mm
- Piston diameter
- 40 mm
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position, positioning
- Any
- Mounting position, Soft Stop
- Any
- Measuring principle of linear potentiometer
- digital
- Structural design
- Piston | Piston rod | Prole barrel
- Position sensing
- Via proximity switch | With integrated linear potentiometer
- Variants
- Clamping unit attached | Extended piston rod | Piston rod at one end
- Protection against torsion/guide
- Dual at piston rod
- Operating pressure
- 1.2 MPa | 12 bar | 174 psi
- Operating pressure for positioning/soft stop
- 4 bar...8 bar
- Max. travel speed
- 1.5 m/s
- Min. travel speed
- 0.05 m/s
- Typical positioning time, short-stroke, horizontal
- 0.4/0.55 s
- Typical positioning time, long stroke, horizontal
- 0.5/0.75 s
- Mode of operation
- Double-acting
- Nominal operating voltage DC
- 5 V
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
