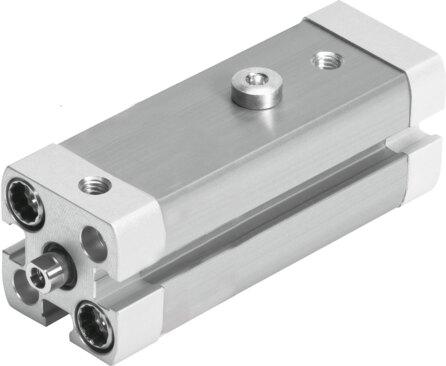

Reference imageConfirm configuration by manufacturer part number.
Festo
535433
Swing clamp cylinder CLR-12-20-R-P-A
The Festo part number 535433 is a double-acting industrial component featuring a 12 mm piston diameter, a 29 mm complete stroke, a 20 mm clamping stroke, and a right-hand 90 degree swivel angle with a +/- 4 degree tolerance. Operating within a pressure range of 2 bar to 10 bar utilizing compressed air per ISO 8573-1:2010 [7:4:4], the unit delivers effective clamping forces of 12 N at 2 bar, 23 N at 4 bar, and 34 N at 6 bar. This structural assembly includes a piston, piston rod, and cylinder barrel with elastic cushioning rings at both ends, position sensing via a proximity switch, and a corrosion resistance class of 2 for moderate stress. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535433
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535433.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Complete stroke
- 29 mm
- Piston diameter
- 12 mm
- Piston rod thread
- M3
- Swivel angle
- 90 deg +/- 4 deg
- Clamping stroke
- 20 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Swivel direction
- right hand
- Operating pressure
- 2 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...80 °C
- Effective clamping force at 2 bar
- 12 N
- Effective clamping force at 4 bar
- 23 N
- Effective clamping force at 6 bar
- 34 N
- Max. clamping nger screw tightening torque
- 1.2 Nm
- Theoretical clamping force at 6 bar
- 51 N
- Product weight
- 160 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- M5
- Flange screws material
- Steel | Galvanized
- Cover material
- Wrought aluminum alloy
