Festo
535436

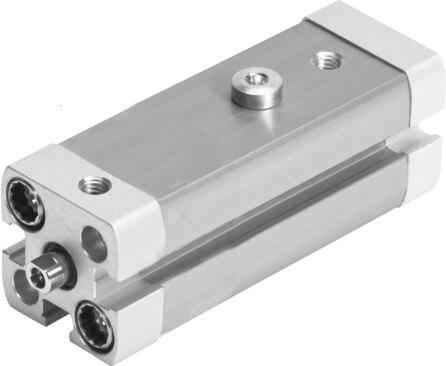

Swing clamp cylinder CLR-16-10-L-P-A
This Festo 535436 double-acting industrial component features a 16 mm piston diameter, a 20 mm complete stroke, a 10 mm clamping stroke, and a 90 deg +/- 4 deg left-hand swivel angle with elastic cushioning rings or pads at both ends. Operating on compressed air as per ISO 8573-1:2010 [7:4:4] within a 2 bar to 10 bar pressure range, it delivers effective clamping forces of 17 N at 2 bar, 36 N at 4 bar, and 53 N at 6 bar across an ambient temperature range of -10 °C to 80 °C. The unit includes a piston rod thread of M4, position sensing via proximity switch, and offers moderate corrosion resistance with a CRC rating of 2 and VDMA24364-B2-L LABS conformity for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 535436
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 535436.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Complete stroke
- 20 mm
- Piston diameter
- 16 mm
- Piston rod thread
- M4
- Swivel angle
- 90 deg +/- 4 deg
- Clamping stroke
- 10 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod | Cylinder barrel
- Position sensing
- Via proximity switch
- Swivel direction
- left hand
- Operating pressure
- 2 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 °C...80 °C
- Effective clamping force at 2 bar
- 17 N
- Effective clamping force at 4 bar
- 36 N
- Effective clamping force at 6 bar
- 53 N
- Max. clamping nger screw tightening torque
- 3 Nm
- Theoretical clamping force at 6 bar
- 90 N
- Product weight
- 160 g
- Type of mounting
- Alternatively: | With through-hole | With internal thread | With accessories
- Pneumatic connection
- M5
- Flange screws material
- Steel | Galvanized
- Cover material
- Wrought aluminum alloy
